stock seals ready for fast delivery

Provides excellent quality with competitive price

Application water pump model pairing table

·Spring & Other Parts(SUS304/SUS316)

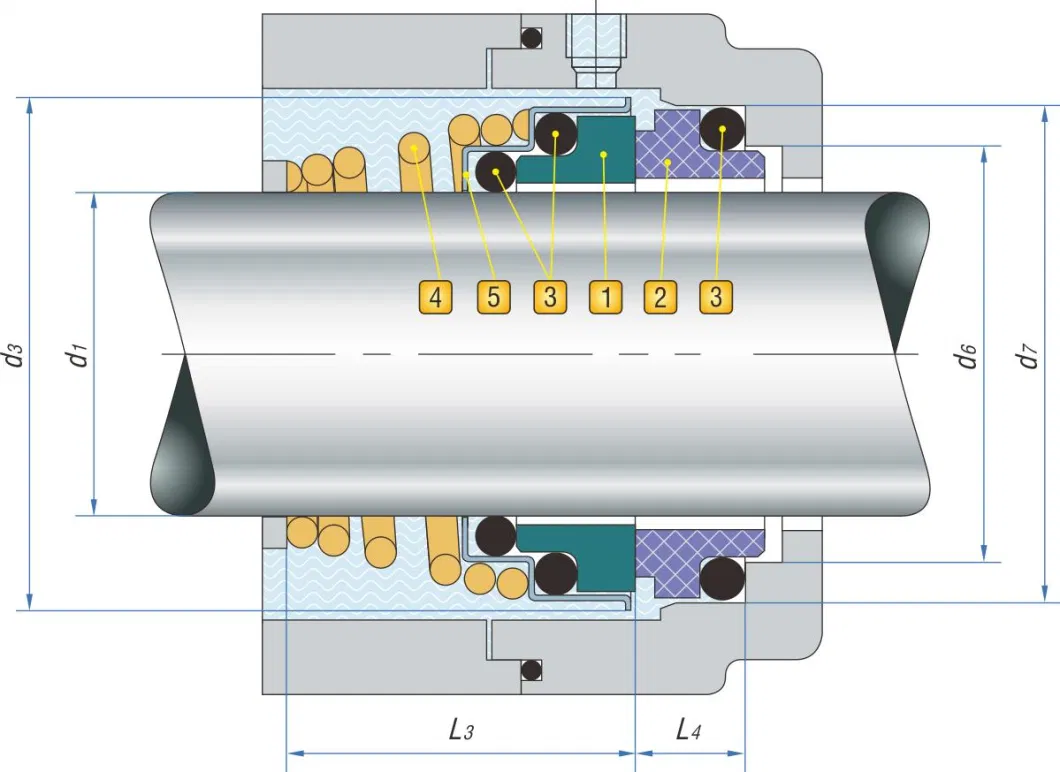

mechanical seal type YM155 with conical spring and O-ring pusher construction, the metal parts produced by Stamping. competitive price and wide range of application have made the YM155 a mass-production seals.

1. Rotary Face

Hot-Pressing Carbon

Carbon graphite, resin impreg

Reaction Bonded Sic RBSIC

Sintered Silicon Carbide SSlC

2. Stationary Seat

Aluminium Oxide Ceramic

Reaction Bonded Sic RBSIC

Sintered Silicon Carbide SSlC

3. Auxiliary Seal

Fuorocarbon RubberFKM

Etylene Propylene Rubber EPDM

Perfluorocarbon Rubber FFKM

4. Spring

GrNi-Steel (AS1304)
GrNiMo-Steel (AlS1316)

5. Metal Parts

Steel (304) (316)

Technical Parameters

Materials

Preperation:
1. Shaft Outside Diameter is within tolerance +-0.05mm
2. Shaft run out <0.1mm
3. Shaf end float <0.13mm
4, No sharp edges on the shaft over the o ring

Note:
During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.

Installation in strucstions:
1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.

2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil

3. Place the cartridge seal into the pump chamber,then:
A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position

B : Tighter four set screws and position the shaft sleeve on the shaft.
C: Remove four gauge plates.Please keep them and they wil be used in future installation and
disassemble.
D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
flushing the seal chamber when pump running.

Note:
ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.
