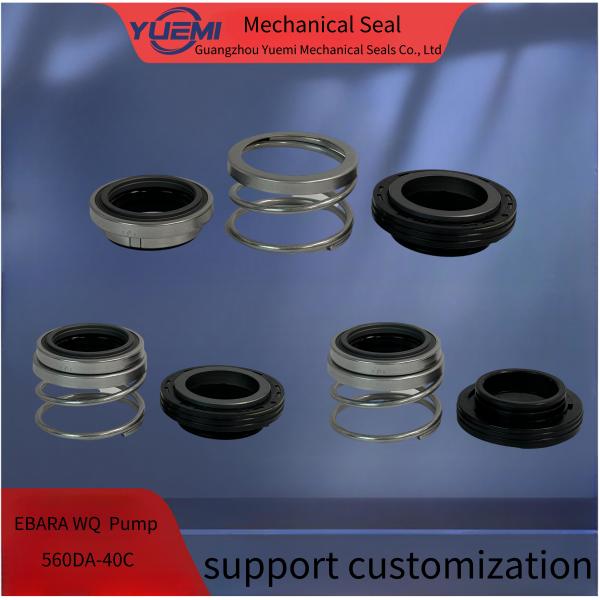

    EBARA WQ Submersible Sewage Pump Combination Mechanical Seal 560DA-40C

    Ask Lasest Price
    Brand Name : YUE MI
    Model Number : 560DA-40C
    Certification : ISO SGS
    Price : US $ 58-60/PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000/Set/Month
    Delivery Time : 2 word days
    • Product Details
    • Company Profile

    EBARA WQ Submersible Sewage Pump Combination Mechanical Seal 560DA-40C


    stock seals ready for fast delivery

    Provides excellent quality with competitive price


    EBARA WQ Submersible Sewage Pump Combination Mechanical Seal 560DA-40CEBARA WQ Submersible Sewage Pump Combination Mechanical Seal 560DA-40CEBARA WQ Submersible Sewage Pump Combination Mechanical Seal 560DA-40C
    Double Seal of submersible pump: Ebara combined mechanical seal 560DA-40C FTK-40

    Technical Parameters


    Temperature-30℃~+200℃
    pressure≤1Mp a
    Speed≤12m/s
    Mediumsewage pump

    Materials


    Rotary RingSIC CAR CE TC
    Stationary Ring

    SIC CAR CE TC

    SpringSUS304/SUS316
    Stationary SeatSUS304/SUS316
    Secondary Seal

    Fkm/EPDM

    Rotary Ring HolderSUS304/SUS316


    Preperation:
    1. Shaft Outside Diameter is within tolerance +-0.05mm
    2. Shaft run out <0.1mm
    3. Shaf end float <0.13mm
    4, No sharp edges on the shaft over the o ring


    Note:
    During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.


    Installation in strucstions:
    1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.


    2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil


    3. Place the cartridge seal into the pump chamber,then:
    A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position

    B : Tighter four set screws and position the shaft sleeve on the shaft.
    C: Remove four gauge plates.Please keep them and they wil be used in future installation and
    disassemble.
    D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
    flushing the seal chamber when pump running.


    Note:
    ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.


    We would like lo sincerely ooperale with Clients to supply high qually products and senice We beleve in establishing a long:erm cooperalive relalionshipis lhe key to suceess
