CNP CDLF CDMF Split Cartridge Face Mechanical Seal CDLC-22mm

    Buy cheap CNP CDLF CDMF Split Cartridge Face Mechanical Seal CDLC-22mm from wholesalers

    Buy cheap CNP CDLF CDMF Split Cartridge Face Mechanical Seal CDLC-22mm from wholesalers
    • Buy cheap CNP CDLF CDMF Split Cartridge Face Mechanical Seal CDLC-22mm from wholesalers
    • Buy cheap CNP CDLF CDMF Split Cartridge Face Mechanical Seal CDLC-22mm from wholesalers
    • Buy cheap CNP CDLF CDMF Split Cartridge Face Mechanical Seal CDLC-22mm from wholesalers

    CNP CDLF CDMF Split Cartridge Face Mechanical Seal CDLC-22mm

    Ask Lasest Price
    Brand Name : YUE MI
    Model Number : CDLC-22mm
    Certification : ISO SGS
    Price : US $ 48-100/PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000/Set/Month
    Delivery Time : 2 word days
    • Product Details
    • Company Profile

    CNP CDLF CDMF Split Cartridge Face Mechanical Seal CDLC-22mm


    CNP CDLF CDMF Split Cartridge Face Mechanical Seal CDLC-22mmCNP CDLF CDMF Split Cartridge Face Mechanical Seal CDLC-22mm


    Product Description

    Mechanical Seal CDLC-12/16/22 CDLA WBF14 WSF14 WB1F14 WB1F16 Vertical Multi-Stage Water Pump Shaft Seals

    Mechanical seal CDLA CDLC-12 16 22 South pump original seal CDLF multistage centrifugal pump

    Model:
    CDLA CDLC-12 16 22
    Origin:
    Mainland China
    Color classification:

    CDLC-12 WBF14 Southern original lettering CDLC-16 WBF14 Southern original lettering CDLC-22 WBF14 Southern original Lettering CDL
    Original mechanical seal:
    South pump industry foreign mechanical seal

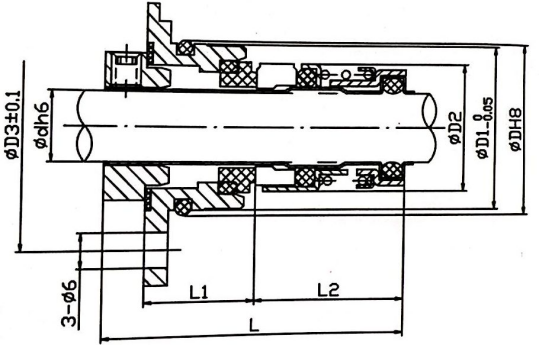

    Application water pump model pairing table



    Model

    PDD1D2D3LL1L2
    CR-12122928.522.14252.51926.5
    CR-16163433.52747562029
    CR-222250/40.5/70.525.535

    Technical Parameters


    Temperature-30℃~+200℃
    pressure≤1.2Mp a
    Speed≤12m/s

    Materials


    Rotary RingSIC CAR CE TC
    Stationary Ring

    SIC CAR CE TC

    SpringSUS304/SUS316
    Stationary SeatSUS304/SUS316
    Secondary Seal

    VITON/EPDM

    Rotary Ring HolderSUS304/SUS316


    Preperation:
    1. Shaft Outside Diameter is within tolerance +-0.05mm
    2. Shaft run out <0.1mm
    3. Shaf end float <0.13mm
    4, No sharp edges on the shaft over the o ring


    Note:
    During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.


    Installation in strucstions:
    1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.


    2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil


    3. Place the cartridge seal into the pump chamber,then:
    A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position

    B : Tighter four set screws and position the shaft sleeve on the shaft.
    C: Remove four gauge plates.Please keep them and they wil be used in future installation and
    disassemble.
    D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
    flushing the seal chamber when pump running.


    Note:
    ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.


    We would like lo sincerely ooperale with Clients to supply high qually products and senice We beleve in establishing a long:erm cooperalive relalionshipis lhe key to suceess
