    Grundfos old vertical multi-stage pump, split mechanical seal Cr Crn CRI GFE-12mm,16mm

    Ask Lasest Price
    Brand Name : YUE MI
    Model Number : GFE-12mm,-16mm
    Certification : ISO SGS
    Price : US $ 1~99/PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000/Set/Month
    Delivery Time : 2 word days
    • Product Details
    • Company Profile

    Grundfos old vertical multi-stage pump, split mechanical seal Cr Crn CRI GFE-12mm,16mm


    Grundfos old vertical multi-stage pump, split mechanical seal Cr Crn CRI GFE-12mm,16mmGrundfos old vertical multi-stage pump, split mechanical seal Cr Crn CRI GFE-12mm,16mmGrundfos old vertical multi-stage pump, split mechanical seal Cr Crn CRI GFE-12mm,16mm

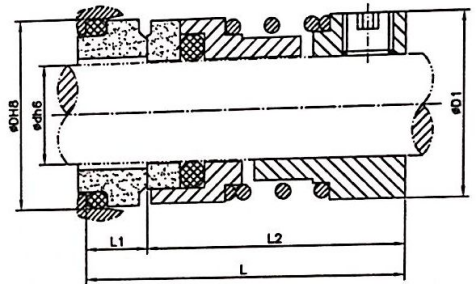

    Application water pump model pairing table


    GFE

    dDD1LL1L2
    12122322397.531.5
    1616272640.5832.5

    Product Description


    Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.

    High Quality Mechanical Seals

    Description:
    Replacement to:

    Suitable for CR, CRN, and CRI series Pumps
    Temperature
    -30ºC to 200ºC, Dependent on the elastomer
    Pressure
    Up to 10 bar
    Speed
    Up to 15 m/s
    End play/axial float allowance
    ±0.1mm
    Size
    12mm to 16mm
    Brand
    JR
    Face
    SiC
    Seat
    SiC
    Elastomer
    NBR, EPDM, Fkm
    Spring
    SS304, SS316
    Metal parts
    SS304, SS316

    Preperation:
    1. Shaft Outside Diameter is within tolerance +-0.05mm
    2. Shaft run out <0.1mm
    3. Shaf end float <0.13mm
    4, No sharp edges on the shaft over the o ring


    Note:
    During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.


    Installation in strucstions:
    1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.


    2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil


    3. Place the cartridge seal into the pump chamber,then:
    A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position

    B : Tighter four set screws and position the shaft sleeve on the shaft.
    C: Remove four gauge plates.Please keep them and they wil be used in future installation and
    disassemble.
    D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
    flushing the seal chamber when pump running.


    Note:
    ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.


    We would like lo sincerely ooperale with Clients to supply high qually products and senice We beleve in establishing a long:erm cooperalive relalionshipis lhe key to suceess

    1.Who are we?
    We are based in Guangdongsheng, China, start from 2014,sell to Western Europe(30.00%),North America(30.00%),Southeast Asia(20.00%),South America(10.00%),Mid East(10.00%).
    2.How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.What can you buy from us?
    Mechanical seals for pumps from various world-renowned brands
    4.Why should you buy from us not from other suppliers?
    We are a manufacturer with 15 years Industry experience.
    5.What services can we provide?
    Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;
    Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
    Language Spoken:English,Chinese,Spanish,French,Russian,Italian K
