    HQQE Vertical Grundfos Pump Mechanical Seal GLF-C-16mm 96511845

    Ask Lasest Price
    Brand Name : YUE MI
    Model Number : GLF-C-16mm
    Certification : ISO SGS
    Price : US $ 1~99/PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000/Set/Month
    Delivery Time : 2 word days
    • Product Details
    • Company Profile

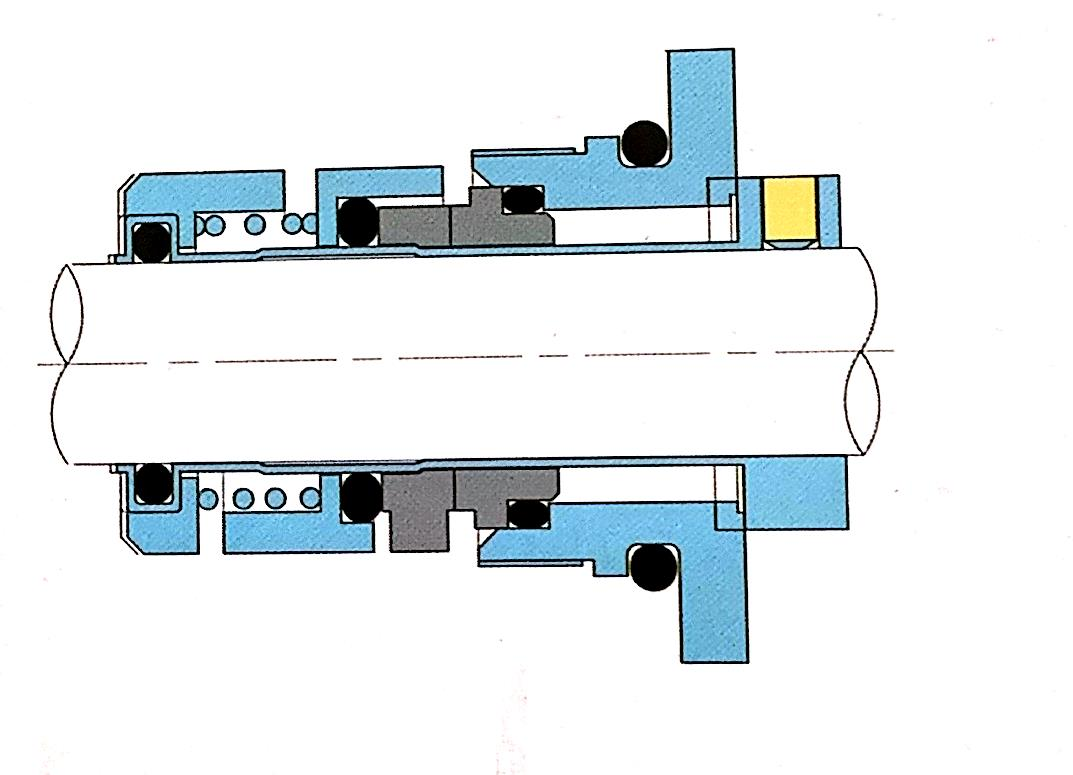

    HQQE Vertical Grundfos Pump Mechanical Seal GLF-C-16mm 96511845

    HQQE Vertical Grundfos Pump Mechanical Seal GLF-C-16mm 96511845


    HQQE Vertical Grundfos Pump Mechanical Seal GLF-C-16mm 96511845HQQE Vertical Grundfos Pump Mechanical Seal GLF-C-16mm 96511845HQQE Vertical Grundfos Pump Mechanical Seal GLF-C-16mm 96511845


    Application water pump model pairing table



    Technical Parameters


    Temperature-30℃~+200℃
    pressure≤1.2Mp a
    Speed≤10m/s
    MediumAcid, alkali, below medium corrosive liquid

    Materials


    Rotary Ring

    SiC/VIT

    Stationary Ring

    Carbon/SiC/TC

    SpringSUS304/SUS316
    Stationary SeatSUS304/SUS316
    Secondary Seal

    Fkm

    Rotary Ring HolderSUS304/SUS316

    China HQQE mechanical seal for submersible sewage pump

    1.YUEMI plug in plastic is for CR pump
    2. Our seals can replace the original seals.
    3.Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc.
    It is ideal with high or pulsing counterpressure or with viscous or sticky fluids.

    4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
    5.OEM and Customized products is welcomed.
    6. Factory Price,High Quality ,Fast Delivery and Best Sevice.


    This product is in stock, we can ship them right away once the payment has been verified.


    Preperation:
    1. Shaft Outside Diameter is within tolerance +-0.05mm
    2. Shaft run out <0.1mm
    3. Shaf end float <0.13mm
    4, No sharp edges on the shaft over the o ring


    Note:
    During the installation,don't scratch or damage the o ring.lf anything is damaged,please contactwith Us to replace a new one.


    Installation in strucstions:
    1. The full set of cartridge seal is cleaned and exactly passed leakage examine before sale.Inorder to avoid damage,don't disassemble and clean the parts again before fixing.


    2 The fitting allowance between the seal and shaft is dl h6 0.8,and there should be leading-inedge at the end of shaft.The outside diameter of shaft at the position of screw should be 01 0.2mm smaller,resisting the screw over-tighten.Lubricate the shaft with oil


    3. Place the cartridge seal into the pump chamber,then:
    A: Tighter four screw bolts of flanges,ensuring the medium leading in hole"G"at the top Position

    B : Tighter four set screws and position the shaft sleeve on the shaft.
    C: Remove four gauge plates.Please keep them and they wil be used in future installation and
    disassemble.
    D: Connect the medium lead_in pipe with hole"G"in order to flush away the friction heat and
    flushing the seal chamber when pump running.


    Note:
    ter complete the installation,turning the shaft by hand to check for the rotationi he shat could not rotate smoothily,seal had been improperly installed.


    We would like lo sincerely ooperale with Clients to supply high qually products and senice We beleve in establishing a long:erm cooperalive relalionshipis lhe key to suceess
