    Fristam Pump Mechanical Seal 1527 Series Stainless Steel Medium Sized Mechanical Seal Fire Pump

    Ask Lasest Price
    Brand Name : YUE MI
    Model Number : 1527
    Certification : ISO SGS
    Price : consult
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300/Set/Month
    Delivery Time : 5-8 word days
    • Product Details
    • Company Profile

    Fristam Pump Mechanical Seal 1527 Series Stainless Steel Medium Sized Mechanical Seal Fire Pump

    Product Description

    Structure Description:
    Single spring design

    Operating Limits:
    Temperature:-20---180ºC
    Speed:15m/s

    Pressure:10bar
    Standard Size:18-100mm

    Material:
    Seal Ring:Car,Sic,Ssic,TC
    Secondary seal:NBR,Viton,EPDM etc.
    Spring and metal parts:304,316,HAST.C

    Product detail:
    Material
    Seal RingCar,Sic,Ssic,TC
    Secondary sealNBR,Viton,EPDM etc.
    Spring and metal parts304,316,HAST.C
    Operating Limits
    Temperature-20---180ºC
    Speed15m/s
    Pressure10bar
    Standard Size18-100mm

    Seal Type1527 series
    Shaft sizeFull size(10-100mm)
    Temperature-20 degree to 180 degree,dependent on the elastomer
    Pressureno less than 1MPa
    Speedno less than 15 m/s
    FaceSIC,TC
    SeatCarbon ,Sic,TC
    ElastomerNBR,EPDM,VITON,
    SpringSS304 SS316
    Metal partsSS304 SS316

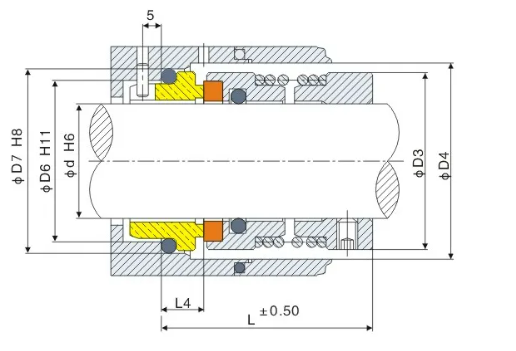

    1527 Dimensions(mm)
    SizedD3D6D7D8L3L4L8
    18183227333351017
    2020342935335.010.017.0
    2222363137335.010.017.0
    2424383339340.010.017.0
    2525393440340.010.017.0
    2828423743340.010.017.0
    3030443945340.010.017.0
    3232464248345.010.017.0
    3333474248345.010.017.0
    3535494450345.010.017.0
    3838544956444.011.018.0
    4040565158444.011.018.0
    4343595461449.011.018.0
    4545615663449.011.018.0
    4848645966449.011.018.0
    5050666270447.013.020.0
    5353696573457.013.020.0
    5555716775457.013.020.0
    5858787078457.013.020.0
    6060807280457.013.020.0
    6363837583457.013.020.0
    6565857785467.013.020.0
    6868888190464.715.320.0
    7070908392464.715.320.0
    7575998897464.715.320.0
    808010495105474.315.722.5
    8585109100110474.315.722.5
    9090114105115474.315.722.5
    9595119110120474.315.722.5
    100100124115125474.315.722.5
