Brand Name : | YUE MI |
Model Number : | GX |
Certification : | ISO SGS |
Price : | consult |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 100/Set/Month |
Delivery Time : | 5-8 word days |

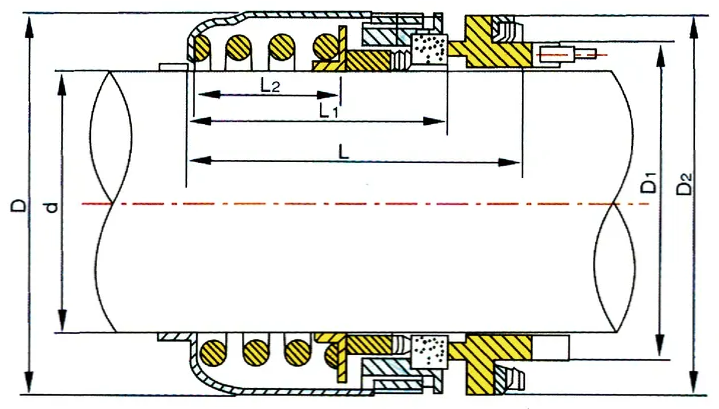

Structural Features: GX mechanical seal adopts internal installation,single end face, sleeve transmission, and balanced type. The GX seriesmechanical seal is a typical mechanical seal for large springs, widelyused as a standard non-equilibrium mechanical seal. lt allows for theuse of various materials and end face combinafions fo meet a widerange of industrial requirements.
Scopes of Application: GX is one of the precision and
complexmechanical basic components, which is a key component
ofvarious mechanical seals, pumps, reaction synthesis
kettles,turbine compressors, submersible motors, and other
equipment.
Inner Diameter: 30 mm to 90 mm
MaterialsRotary Ring Face: Carbon/SiC/TC
Stationary Ring Face: Carbon/SiC/TC
Elastomers: NBR/ViOn/EPDM/PTFE
Springs: SS304/SS316
Metal Parts: SS304/$$316
Operation ParametersPressure: 0~0.8 MPa
Temperature:0~80°CLinear Speed:< 25 m/s
Mediums: In engine oil, gasoline, weak acid,weak base.
Temperature | -20ºC to 200ºC, dependent on the elastomer |
Pressure | Up to 25 bar |
Speed | Up to 20 m/s |
Sizes | 30-90mm |
Face | Carbon, SiC, TC |
Seat | SiC, TC |
O-rings | NBR, EPDM, , Aflas, Kalrez, Chemraz etc. |
Spring | SS304, SS316 |
Metal parts | SS304, SS316 |
![]() |
