Brand Name : | YUE MI |
Model Number : | 58U/59U |
Certification : | ISO SGS |
Price : | consult |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 200/Set/Month |
Delivery Time : | 5-8 word days |
Performance Capabilities:
Temperature | -40ºC to 150ºC, dependent on the elastomer |
Pressure | ≤1.7MPa |
Speed | ≤25m/s |
End play/axial float allowance | ±0.1mm |
Size | 14-100MM |
Brand | BE |
Face | Carbon, SiC, TC |
Seat | Ceramic, SiC, TC |
Elastomer | NBR, EPDM, etc. |
Spring | SS304, SS316 |
Metal parts | SS304, SS316 |
Idividual Packing | Using foam and plastic paper wrapped, then put one piece of seal in
one box,finally put in standard export carton. |

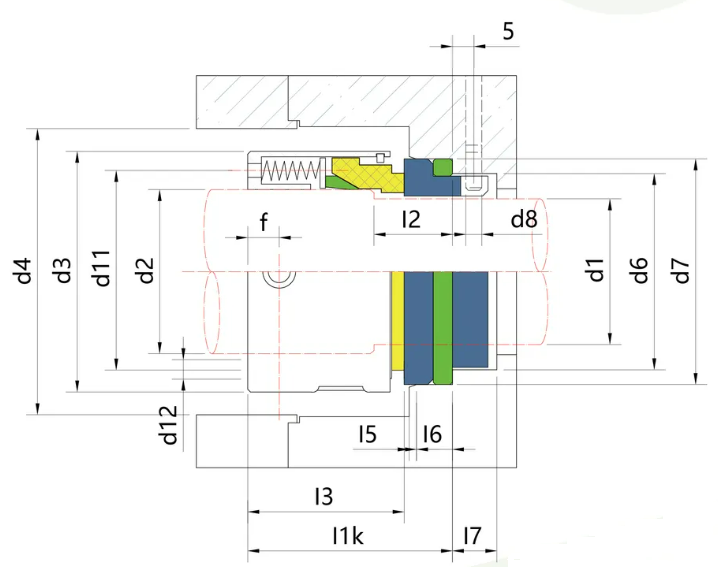

Seal Size d | D3 | D2 | D1 | L1 | L2 | L3 |
14 | 24.0 | 21.0 | 25.0 | 23.0 | 12.0 | 18.5 |
16 | 26.0 | 23.0 | 27.0 | 23.0 | 12.0 | 18.5 |
18 | 32.0 | 27.0 | 33.0 | 24.0 | 13.5 | 20.5 |
20 | 34.0 | 29.0 | 35.0 | 24.0 | 13.5 | 20.5 |
22 | 36.0 | 31.0 | 37.0 | 24.0 | 13.5 | 20.5 |
24 | 38.0 | 33.0 | 39.0 | 26.5 | 13.5 | 20.3 |
25 | 39.0 | 34.0 | 40.0 | 27.0 | 13.0 | 20.0 |
28 | 42.0 | 37.0 | 43.0 | 30.0 | 12.5 | 19.5 |
30 | 44.0 | 39.0 | 45.0 | 30.5 | 12.0 | 19.0 |
32 | 46.0 | 42.0 | 48.0 | 30.5 | 12.0 | 19.0 |
33 | 47.0 | 42.0 | 48.0 | 30.5 | 12.0 | 19.0 |
35 | 49.0 | 44.0 | 50.0 | 30.5 | 12.0 | 19.0 |
38 | 54.0 | 49.0 | 56.0 | 32.0 | 13.0 | 20.0 |
40 | 56.0 | 51.0 | 58.0 | 32.0 | 13.0 | 20.0 |
43 | 59.0 | 54.0 | 61.0 | 32.0 | 13.0 | 20.0 |
45 | 61.0 | 56.0 | 63.0 | 32.0 | 13.0 | 20.0 |
48 | 64.0 | 59.0 | 65.0 | 32.0 | 13.0 | 20.0 |
50 | 66.0 | 62.0 | 70.0 | 34.0 | 13.5 | 20.5 |
53 | 69.0 | 65.0 | 73.0 | 34.0 | 13.5 | 20.5 |
55 | 71.0 | 67.0 | 75.0 | 34.0 | 13.5 | 20.5 |
58 | 78.0 | 70.0 | 78.0 | 39.0 | 13.5 | 20.5 |
60 | 80.0 | 72.0 | 80.0 | 39.0 | 13.5 | 20.5 |
63 | 83.0 | 75.0 | 83.0 | 39.0 | 13.5 | 20.5 |
65 | 85.0 | 77.0 | 85.0 | 39.0 | 13.5 | 20.5 |
68 | 88.0 | 81.0 | 90.0 | 39.0 | 13.5 | 20.5 |
70 | 90.0 | 83.0 | 92.0 | 45.5 | 14.5 | 21.5 |
75 | 99.0 | 88.0 | 97.0 | 45.5 | 14.5 | 21.5 |
80 | 104.0 | 95.0 | 105.0 | 45.0 | 15.0 | 22.0 |
85 | 109.0 | 100.0 | 110.0 | 45.0 | 15.0 | 22.0 |
90 | 114.0 | 105.0 | 115.0 | 50.0 | 15.0 | 22.0 |
95 | 119.0 | 110.0 | 120.0 | 50.0 | 15.0 | 22.0 |
100 | 124.0 | 115.0 | 125.0 | 50.0 | 15.0 | 22.0 |
FAQ
Question 1: Are you a factory or a trading company?
Answer: We are a factory manufacturing mechanical seals. We have
regular models in stock and customized products are also available.
Please feel free to contact us if you need any.
Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity
is at least ten. We welcome you to test the quality of our products
and our services through small orders and look forward to long-term
cooperation with you next.
Question 3: How can I pay my order?
Answer: We accept T/T, Paypal, D/P, Western Union, Money Gram to
pay.
Question 4: Can I try to get a Sample before the order?
Answer: Sure. But our company can not provides you with samples for
free, and you also have to pay for the international delivery
(freight collect payment)
![]() |
