    M37G G9 Mechanical Seal Rubber Bellows BT-RN Aesseal T03 Flowserve 42 Roten 2 Seal For Pump

    Ask Lasest Price
    Brand Name : YUE MI
    Model Number : M37G-G9
    Certification : ISO SGS
    Price : consult
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100/Set/Month
    Delivery Time : 5-8 word days
    • Product Details
    • Company Profile

    M37G G9 Mechanical Seal Rubber Bellows BT-RN Aesseal T03 Flowserve 42 Roten 2 Seal For Pump

    Product Description


    1. EQUIVALENT TO:
    Bgm BT-RN seal
    Aesseal T03 seal
    Flowserve 42 seal
    Latty T900 seal
    Roten 2 seal
    Sterling SR2 seal

    2. Applicable Range:
    Pressure in the seal chamber: 0-1.2MPa
    Temperature in the seal chamber: -30ºC~180ºC
    Linear Velocity: ≤ 10m/s
    Medium: water, polluted water, oil and minor corrosive liquid

    3. Features:
    Complies with DIN24960
    Certificate: ISO9001:2008
    High quality and competitive price

    Materials

    • ROTARY FACES: Silicon Carbide, Tungsten Carbide, Carbon Graphite
    • STATIONARY SEATS: Silicon Carbide, Alumina Ceramic, Carbon Graphite
    • BELLOWS: NBR, Vit/FKM, EPDM, Aflas, Neoprene
    • METAL PARTS: 304 SS standard or 316 SS option available

    Operating Parameters

    Dimensions:all
    Pressure:145 PSI / 10 BAR
    Temperature:160°C / 320°F
    Velocity:10 M/S - 2000 FPM

    Technical Features

    • Unbalanced
    • Single seal
    • Conical spring
    • Dynamic O-ring
    • To DIN 24960 specifications
    Applications
    • Chemical pump
    • Oil pump
    • Water and waste water technology
    • Pulp and paper industry
    • Sugar industry
    • Industrial pump

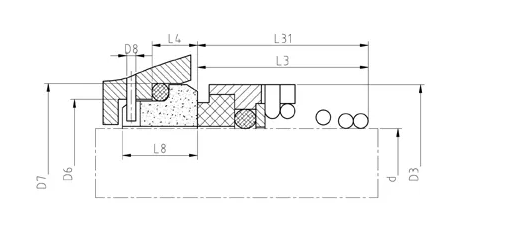

    M37G Dimensions(mm)Size101214161820222425283032333538404345485053555860636568707580
    d10.012.014.016.018.020.022.024.025.028.030.032.033.035.038.040.043.045.048.050.053.055.058.060.063.065.068.070.075.080.0
    D320.022024.026.031.034.036.038.039.042.044.046.047.049.054.056.059.061.064.066.00.6971.078.079.083.085.088.090.098.0103.0
    D617.019.021.023.027.029.031.033.034.037.039.042.042.044.049.051.054.056.059.062.065.067.070.072075.077.081.083.088.095.0
    D721.023.025.027.033.035.037.039.040.043.045.048.048.050.056.058.061.063.066.070.073.075.078.080.083.085.090.092.097.0105.0
    D83.03.03.03.03.03.03.03.03.03.03.03.03.03.04.04.04.04.04.04.04.04.04.04.04.04.04.04.04.04.0
    L316.917.417.419.520.522.023.525.026.526.525.028.5-28.532.234.7-39.244.745.7-49.052.053.0-54.355.356.356.359.3
    L31--16.516.518.019.020.522.023.524.524.528.0-28.031.034.0--36.542.043.0-47.050.051.0--52.052.754.054.058.0
    L410.010.010.010.011.511.511.511.511.511.511.511.511.511.514.014.014.014.014.015.015.015.015.015.015.015.018.018.018.018.2
    L817.517.517.517.519.519.519.519.519.519.519.519.519.519.522022.022.022.022023.023.023.023.023.023.023.026.026.026.026.2
