    Replace Aesseal B012 Flowserve 192 Burg Mg12 Mg1 Mg12 Mg13 Mg1s20 Rubber Bellow Mechanical Seal For Water Pump

    Ask Lasest Price
    Brand Name : YUE MI
    Model Number : MG12
    Certification : ISO SGS
    Price : consult
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000/Set/Month
    Delivery Time : 5-8 word days
    • Product Details
    • Company Profile

    Replace Aesseal B012 Flowserve 192 Burg Mg12 Mg1 Mg12 Mg13 Mg1s20 Rubber Bellow Mechanical Seal For Water Pump

    MG1
    Features

    • For plain shafts
    • Single and dual seal
    • Elastomer bellows rotating
    • Balanced
    • Independent of direction of rotation
    • No torsion on bellows

    Advantages

    • Shaft protection over entire seal length
    • Protection of seal face during installation due to special bellows design
    • Insensitive to shaft deflections due to large axial movement ability
    • Universal application opportunities
    • Important material certifications available
    • High flexibility due to wide offer on materials
    • Suitable for low-end sterile applications
    • Special design for hot water pumps (RMG12) available
    • Dimension adaptions and additional seats available

    Materials

    Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1, eSiC-Q7)
    Seat: Silicon carbide (Q1, eSic-Q7), Tungsten carbide (U3)
    Elastomer: NBR (P), EPDM (E), FKM (V),
    HNBR (X4)
    Metal parts: CrNiMo steel (G), Hastelloy® (M)
    Further materials upon request.


    MG12
    Dimensions, items and designations same as for MG1, but with an extended bellows tail to achieve the fitting length I1k according to EN 12756 in combination with seat G6 or G60 (da exceeds EN 12756).
    MG13
    Dimensions, items and designations same as for MG1, but with an extended bellows tail to achieve the fitting length I1N according to EN 12756 in combination with seat G6 or G60 (da exceeds EN 12756).
    MG1S20
    Dimensions, items and designations same as for MG1, but with an extended bellows tail to achieve the special fitting length I1S in combination with seat G50.

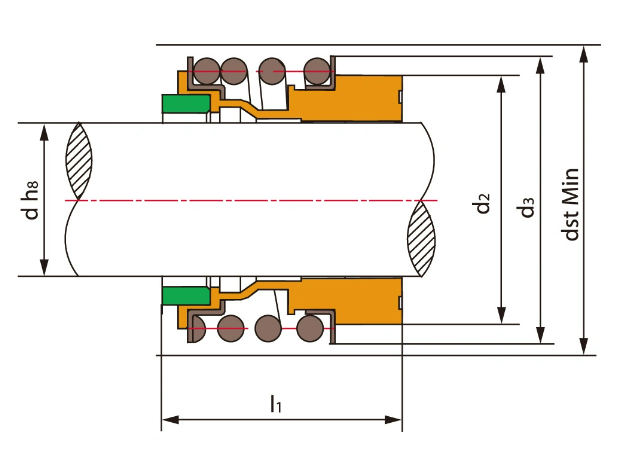

    MG12
    Seal size
    d(mm)
    dd2dstd3l1
    101020.524.022.525.9
    121222.526.025.025.9
    141426.530.028.528.4
    161626.530.028.528.4
    181829.033.032.030.0
    202033.038.037.030.0
    222233.038.037.030.0
    242438.044.042.532.5
    252538.044.042.532.5
    282844.050.049.035.0
    303044.050.049.035.0
    323246.055.053.535.0
    333346.055.053.535.0
    353550.059.057.035.0
    383853.061.059.036.0
    404055.064.062.036.0
    434358.067.065.536.0
    454560.070.068.036.0
    484863.074.070.536.0
    505065.077.074.038.0
    535370.081.078.536.5
    555572.083.081.036.5
    585875.088.085.541.5
    606079.091.088.541.5
    656584.096.093.541.5
    686888.0100.096.541.2
    707090.0103.099.548.7
    757595.0110.0107.048.7
    8080100.0116.0112.048.0
    8585107.0124.0120.046.0
    9090114.0131.0127.051.0
    9595119.0136.0132.051.0
    100100124.0140.0137.051.0
